6000 Cycle Lithium Battery Storage for Sustainable Energy Supply

Ask Lasest Price
Brand Name :	GDQ
Model Number :	WMB100
Certification :	UN38.3 MSDS CE
Price :	consult prices online
Payment Terms :	T/T

Add to Cart

Product Details
Company Profile

6000 Cycle Lithium Battery Storage for Sustainable Energy Supply

Product Description

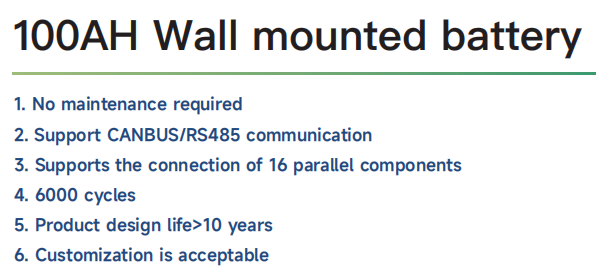

The 100Ah wall-mounted lithium battery provides an efficient and safe energy storage solution for residential and small commercial users. This product requires no maintenance, supports CANBUS/RS485 communication, and allows connection of up to 16 parallel components. With a cycle life of up to 6000 cycles and a product design life of more than 10 years, it is built for long-term use. The battery is equipped with an advanced BMS system, offering comprehensive protection against overcharge, over-discharge, and overcurrent to ensure safe operation.

Electrical Characteristic
Nominal voltage	48V	51.2V
Nominal capacity	100Ah
Nominal energy	4.8KWH	5.12KWH
Internal resistance	≤50m2
Output power(Max)	4.8KW	5.12KW
Self discharge rate	≤3%per month@25℃
Max connection	16pcs in parallel
Cycle life	>6000 cycles@0.5c@80%/DOD@25℃
Working temperature	-20℃-60%/-4°F-140F
Mechanical characteristic
Battery cell type	Prismatic battery cell
Battery cell material	Lithium iron phosphate
Battery cell capacity	100Ah
Battery cell layout	15S1P	16SIP
Shell material	Iron
Dimension	605405200mm
Net weight	45KG/100LBS	47KG/103LBS
Warranty	5years
IP level	IP54
ACcessory	1.2m 4AWG positive&negative wire2pcs User manual1pcs,1m RJ45 wire*1pcs
Packaging infomation	Quick connect terminal4(positive2/Negative2) RS485 terminal2/CANBUS terminal1 Address dial1/soc indicator1 LCD display dashboard1
Charging&Discharging Characteristic
Standard chargecurrent	50A
Maximum charging current	100A
Charge method	CC-CA
Charge cut-offvoltage	54.75V
Standard discharge current	50A
Maximum discharge current	100A
Discharge cut-offvoltage	40.5V
BMS Characteristic
Maximum discharge current	100A(Maximum,default)
Short cuicuit protection	Support,recover when re-charge
BMS pre-charge function	Supportims-5000ms
Overcurrent protection	110A(Default value)
Overcurrent reaction time	30ms
Overcharge protection	54.75V	58.4V
Overdischarge protection	40.5V	43.2V
Communication method	CANBUS/RS485
working temperature (recommended)	-20℃-70%/-4F-158F

Application

Suitable for home, office, and small commercial energy storage
Can be paired with solar systems for self-sufficient energy supply
Ideal for emergency backup power and off-grid energy storage systems

Shipping Methods

Supports global air and sea shipping.
